Flange Insulation Kits, 法蘭絕緣墊片

Flange Insulation Kits Img1.jpeg

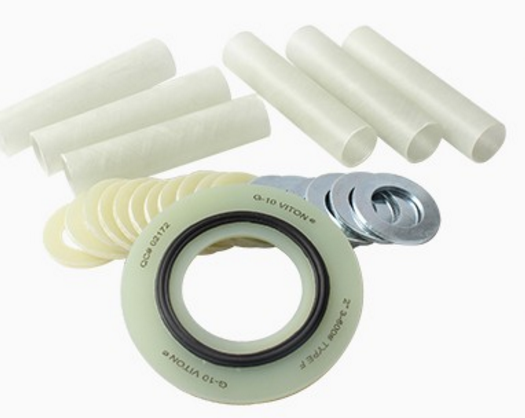

Flange Insulation Kits RF.PNG

Flange Insulation Kit_Type E, for FF Flange Flange Insulation Kit_Type F, for RF/FF Flange

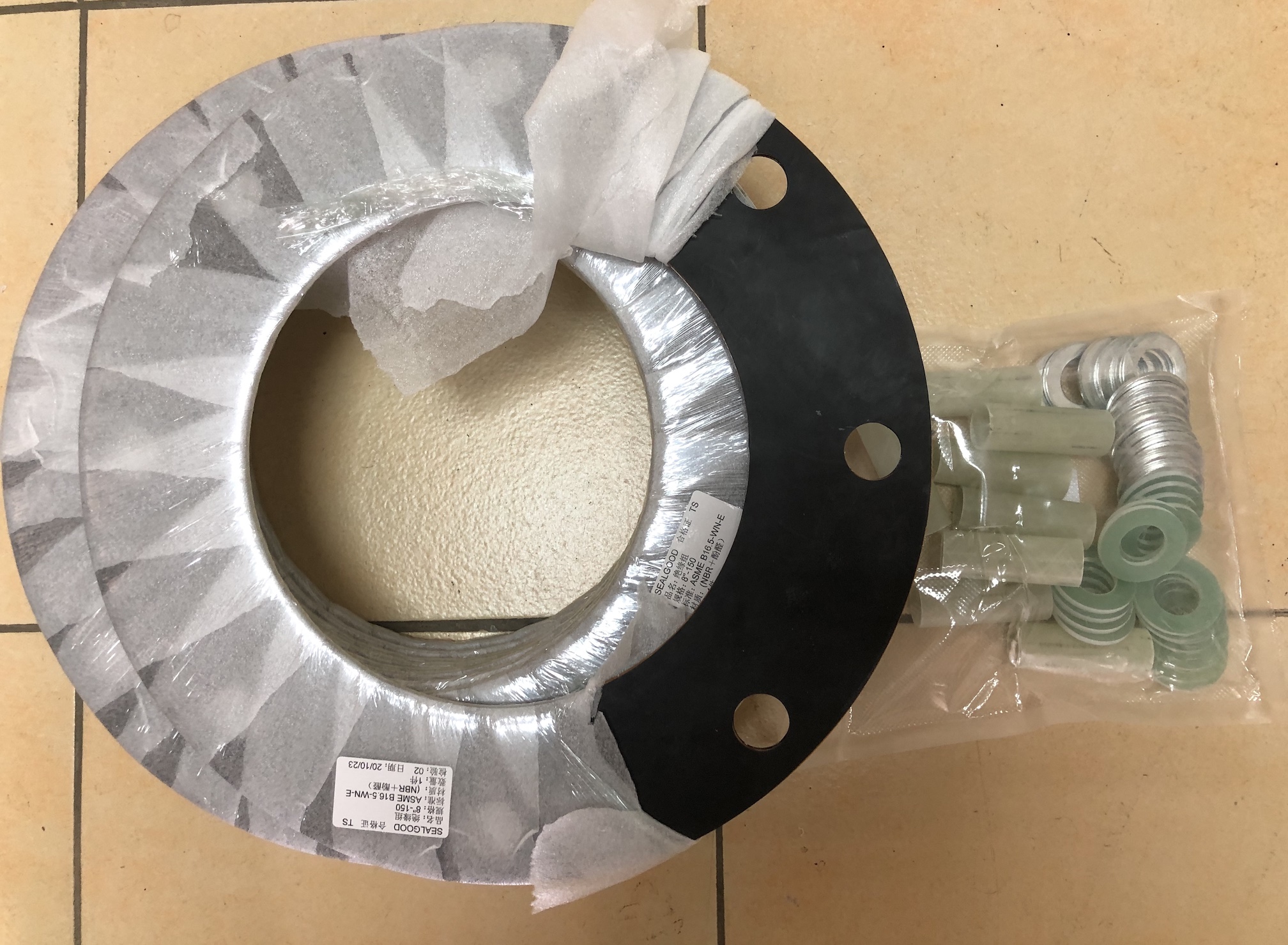

Flange Insulation Gasket Kit IMG_2644.jpg

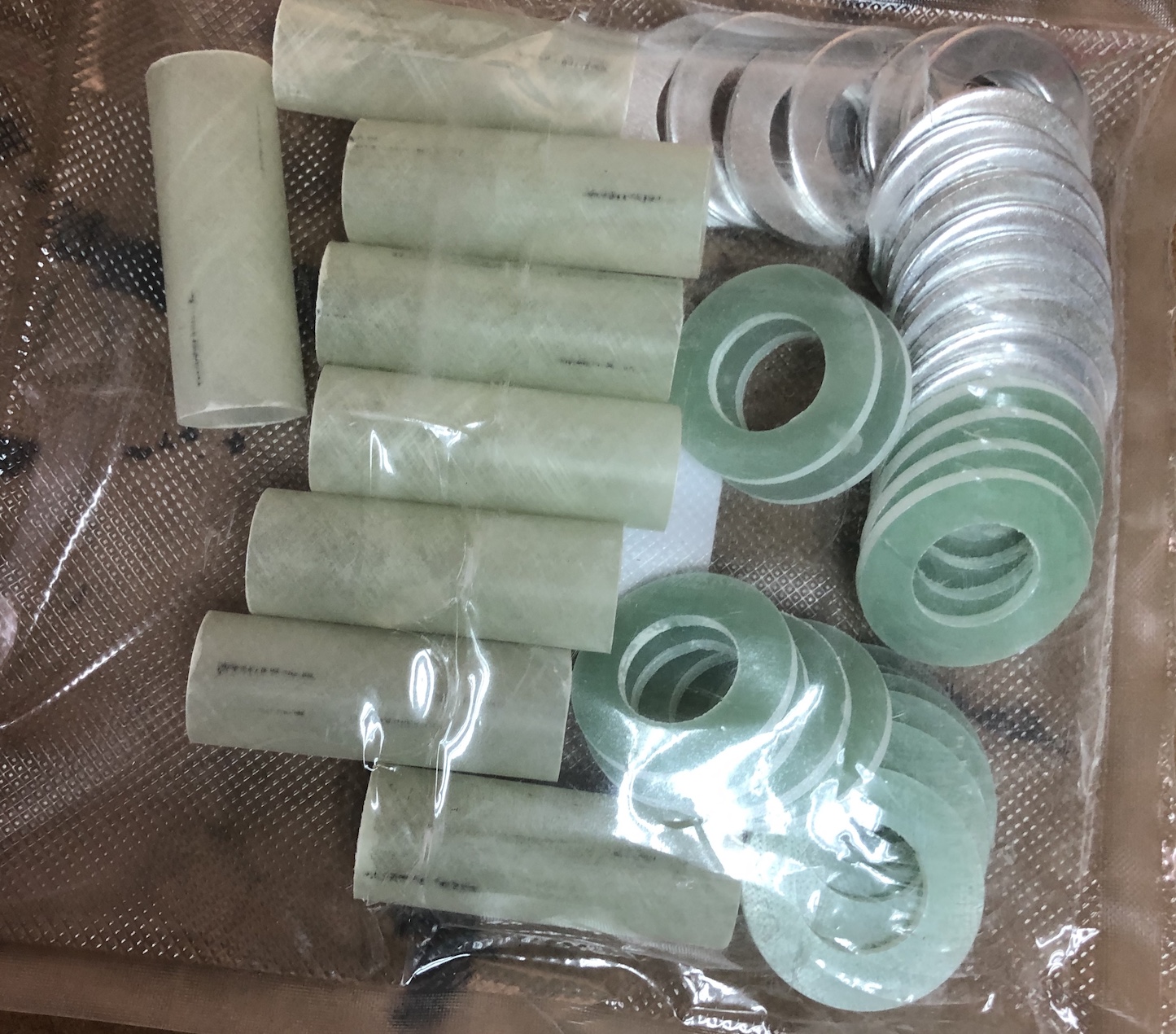

Sleeve IMG_2645.jpg

Flange Insulation Kit_Type E, FF

Insulation Sleeves & Washers, Washers

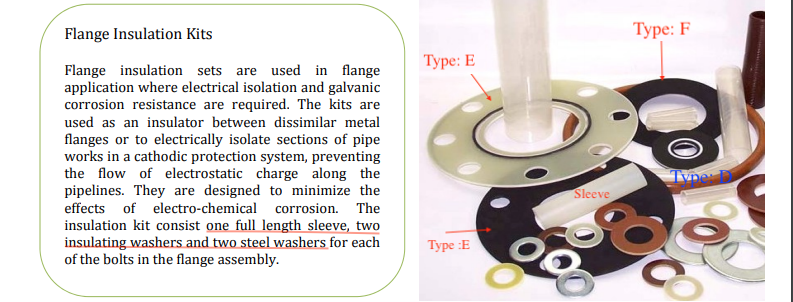

Flange Insulation Gasket Kit.png

Type “E” Gaskets

Outside diameter of this type gaskets extend up to the external diameter of the flange. This gasket consists of bolt holes, this helps to automatically align and center the gaskets and gives optimum protection against foreign particles which can short out the flange.

Type “F” Gaskets

This type of gasket fits within the bolt circle of the flange. External diameter of the gasket extend up to the inside diameter of the bolt hole circle.

Type “D” Gaskets

This type of gasket is RTJ style however Gasket’s “corrosion control system HP” gaskets are best alternative to the RTJ style gaskets.

Flat Face Flange (FF).png Raised Face Flange (RF).png RTJ Flange.png

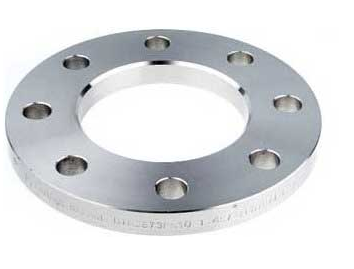

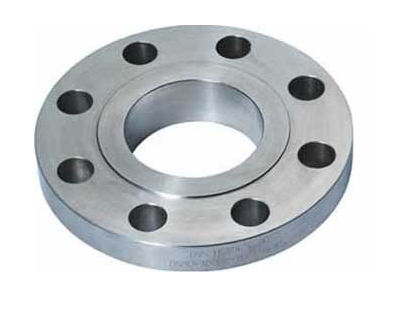

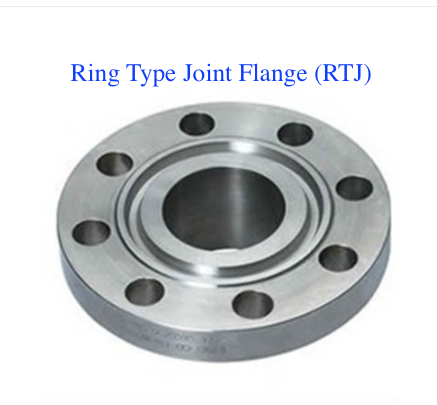

Flat Face Flange (FF) Raised Face Flange (RF) Ring Type Joint Flange (RTJ)
