OPW 7H Automatic Shut-Off Nozzles, OPW 7HB, OPW 11AP, OPW 11BP, OPW 12VW

OPW 7H Diesel Automatic Shut-Off Nozzles

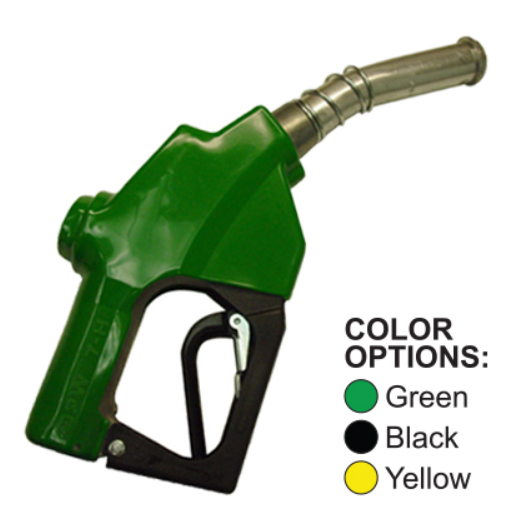

OPW 7H Diesel Nozzle. For Heavy-Duty, High-Flow Truck, Bus and Fleet Service.  If you operate a full-service truckstop, refuel your own fleet or manage a cardlock refueling location, the low cost, long life and durability of the OPW 7H® high flow nozzle can help increase your productivity, sales and profits. OPW 7H nozzles have a 1" NPT inlet and a 1 3/16" O.D. spout.

NOTE: These nozzles are not intended to be used in Retail applications with a dispenser.

opw 7H Automatic Nozzle.PNG

Product Code : OPW7H0100 Green

Manufacturer: OPW

Shipping Weight: 4 Lbs. ;

Color: Green/Black/Yellow

Body: aluminum ;

Lever & Lever Guard: Duratuff®

Packing: Graphite with Teflon®

Disc: Viton®

Inlet Size: 1 NPT

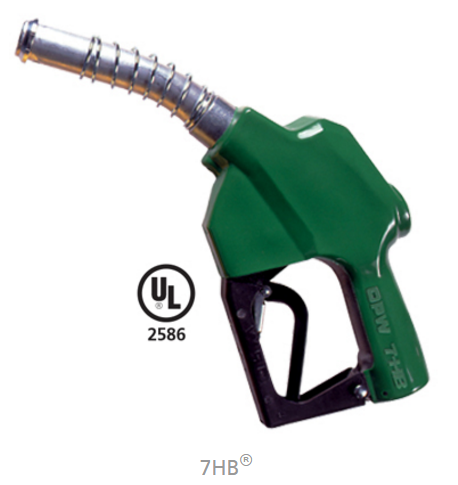

OPW 7HB Automatic Pre-Pay Nozzle

The OPW 7HB ® Series high-quality Diesel automatic shut-off nozzle is designed specifically for self-service prepay or card-lock systems to help prevent diesel fuel spills. The OPW 7HB ® cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed. This means the OPW 7HB ® is closed when placed back in the dispenser storage position. These Diesel nozzles are available in the following colors black, green and yellow.


Product Code : OPW7HB0100 Green

                       OPW7H0400 Black

Manufacturer : OPW

Shipping Weight : 4LBs

Hand Insulator Color : Green/black/yellow

  • Body: aluminum
  • Lever & Lever Guard: Duratuff®
  • Packing: Graphite with Teflon®
  • Disc: Viton®
  • Inlet Size: 1" NPT
  • Spout Size: 1-3/16

OPW 11AP Unleaded Automatic Fuel Nozzle

The OPW 11 Series automatic nozzles are OPW’s premium conventional nozzles for safe retail and commercial petroleum filling. The OPW 11® Series is the most trusted conventional nozzle in the world for full service use. OPW 11AP nozzles have a 3/4" NPT inlet.

OPW 11AP.PNG

Manufacturer:OPW

Shipping Weight:3 lbs.

Color: Green/black/red/yellow

Body: aluminum

Lever & Lever Guard: Duratuff®

Packing: Graphite with Teflon®

Disc: Viton®

Spout: aluminum

Inlet Size: 3/4 NPT

Weight: 2.73 lbs. each 43.1 lbs/case of 15

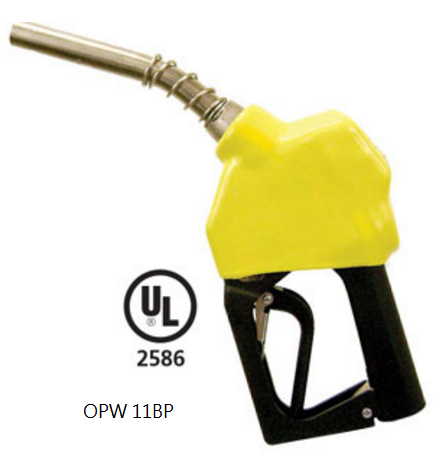

OPW 11BP Series Ethanol Nozzles

The OPW 11BP Series nozzles are designed and rigorously tested for use in today’s alternative fuels. It’s the first nozzle of its kind to be UL-Listed for use in Ethanol-blended fuels up to 85%.

Features & Benefits

Safe for Use

  • UL-Listed for up to 85% Ethanol.
  • Prevents gasoline spills in prepay or card-lock systems utilizing OPW's unique No Pressure – No Flow Device. It cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed.
  • Prevents consumer from jamming the nozzle in an open position – Blocker on lever guard.
  • FlowLock™ allows nozzle to shut-off when falling out of a vehicle, and tipped up, limiting spillage and unsafe conditions.
OPW 11BP.PNG
  • Body: Aluminum w/ nickel plating
  • Lever & Lever Guard: Duratuff®
  • Packing: Graphite with Teflon®
  • Seals: Viton®
  • Spout: Aluminum w/ nickel plating
  • Inlet Size: 3/4" NPT
  • Weight: 2.73 lbs. each 1.25 kg each
 Color : Black/Yellow/Red

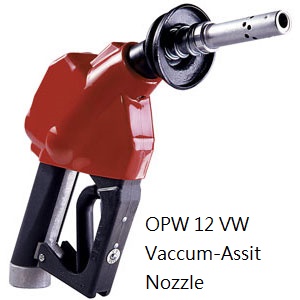

OPW 12 VW.jpeg

12VW Vacuum-Assist Nozzles

 The OPW 12VW Series automatic nozzles are one of OPW's premium nozzles for Vacuum-Assist vapor recovery systems. Designed with an integrated vapor-valve, they are certified on the most used vapor recovery systems in the world. The 12VW is the most trusted vapor recovery nozzle in the world for the applications it is certified on including:

  • Dresser/Wayne Wayne®Vac
  • Gilbarco® VaporVac®
  • Schlumberger
  • Vacurite

Color: Green/Red/Black



Data Sheet_OPW 7H, 7HB .

Data Sheet_OPW 11AP, 11BP.

Data Sheet_OPW 12VW

OPW 7H Automatic Shut-off Nozzles.jpg


OPW 7HB & 11BP.jpeg

OPW 7HB-0400-XC 1'' NPT 7HB Diesel Black Ex-Cold Nozzle
