SPX FLOW Plenty Pumps, TWINRO Twin Screw Pumps

The Plenty product portfolio includes pumps, mixers, filters and process solutions. These products/services serve many markets including: Oil and Gas, Power, Water and Wastewater, Pulp and Paper, Chemical, Edible Oil and Sugar.


Description

The Twinro 2 screw pump is a heavy duty, fixed flow transfer unit. It is available in either Iron, Steel or Stainless Steel constructions to suit a variety of duties. The design of the screwset means the screws intermesh without metalic contact, making the pump suitable for non-lubricating duties. The pump is available in two configurations:

Outboard bearing pumps suitable for non-lubricating liquids, such as Petroleum Liquids, Palm Oils, Fatty Acids and Water Emulsions.

Inboard bearing pumps suitable for lubricating liquids, such as Lube Oils, and clean Fuel Oils.

API 676 and other specifications

Plenty Twinro pumps can be supplied in accordance with the requirements of API 676. Other international pump standards or clients specifications can be accomodated.

Unitization

Plenty Twinro pumps can be supplied bareshaft or fully assembled with driver on a baseplate with coupling and guard.

Pump Sealing

Plenty Twinro pumps can be supplied with single components or single cartridge style seals.

Relief Valve

The Twinro range has a built-in full flow relief valve for pump protection, as standard.

Relief Valve Jacking Device

The Twinro range can be fitted with a relief valve jacking device to manually lift the relief valve from its seat. This device allows for recirculation of the liquid to aid extreme suction or discharge conditions. The RVJD is useful during cold start conditions to avoid the need to oversize the driver.

Dry Running

The Twinro range can be fitted with a dry running facility to allow full loading and unloading cycles.

Self Priming

The Twinro range has good self-priming capabilities to evacuate air from suction lines.

 Specifications

Capacity up to 800m3/hr 2200 US GPM
Pressure up to 20 Bar 290 Psi
Viscosity up to 7000 cSt 32500 ssu
Temperature -40 to +200°C -40 to 390°F
Capacities up to 1000m3/hr can be accommodated on special applications.

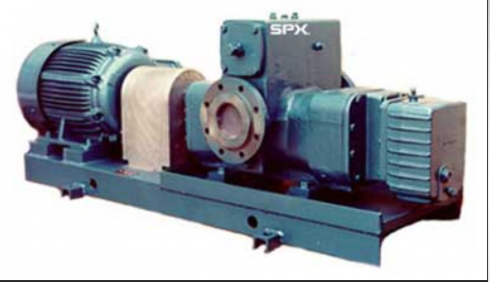

  • Photo 1 of 4SPX Twinro Two Screw Pump

  • Photo 2 of 4Plenty Pumps

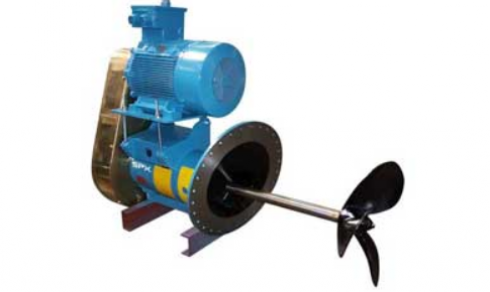

  • Photo 3 of 4Plenty Mixer

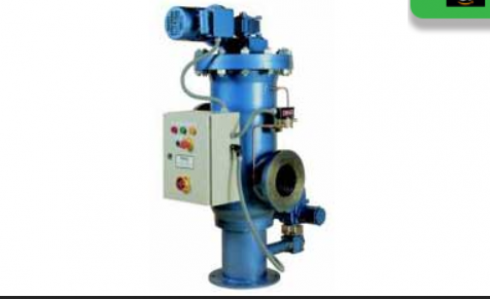

  • Photo 4 of 4Plenty Filtration

SPX Plenty Twin Screw Pumps

SPX Plenty Triple Screw Pumps

http://www.spxflow.com/en/plenty/
