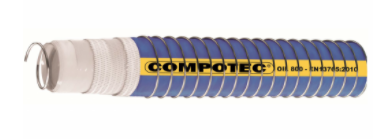

COMPOTEC® OIL is a multi-layer thermoplastic hose manufactured from Polypropylene, Polyethylene and Polyester films and Polypropylene fabrics, with a weatherproof and abrasion resistant outer cover made of Polyvinyl coated Polyester fabric. Outer cover is also available in ELASTOTHANE®, a special PU coated fabric; its UV, Ozone, Sunlight and weathering resistance, offers superior temperature and abrasion characteristics.

All the different layers are wrapped together and tensioned between internal and external wire spirals. This enables our product to meet the requirement of the Petrol-chemical industry and those of the Oil & Gas industry.

COMPOTEC® assemblies are fitted with an extensive range of couplings readily available, externally swaged with crimping ferrules.

COMPOTEC® OIL assemblies are tested at 1 1⁄2 times rated working pressures for safety and reliability, in accordance with EN ISO 1402 (BS 5842:1980 clause 6.4). The securing ferrule, at one end of the hose, is permanently marked by engraving, with manufacturer’s name, nominal bore, the hose assembly serial number and the test date. The marking of hose assemblies is made in compliance with PED Directive (97/23/ CE). Full test certification can be supplied on request.

COMPOTEC® OIL hoses can be supplied in the FIRETEC version with ADR selfestinguish CL1 cover. Burst pressure indicated, is at ambient temperature when tested in accordance with EN ISO 1402 (BS 5173 section 102.10:1990). Electrical continuity is achieved by the two wires bonded to the end fittings, this helps dissipate accumulated charge and to avoid static flash. The electric resistance of hose assemblies is less than 1 ohm/mt, as required by EN ISO 8031:2009 – 4.7. Upon request it’s possibile to manufacture COMPOTEC® hoses in accordance to the Directive 94/9/EC “ATEX”, with a special outer antistatic black cover, ground connection cable, for explosive environment.

COMPOTEC® OIL 800 HD and OIL SD hoses are specially engineered for the transfer of hydrocarbons, including oil, petrol, diesel, lubricating oils, MTBE, paraffin and 100% aromatics, in all kinds of transfer.

Available Versions

EN 13765:2015 Type 1: Vaporoil – Light Duty
EN 13765:2015 Type 2: Oil SD – Standart Duty
EN 13765:2015 Type 3: Oil 800 HD – Heavy Duty
