Aljac Bonding Cable Reel, Hannay Grounding Cable Reel


For Cable 5.5mm x 15M, 5.5mm x 40M.

For Hazardous Area.

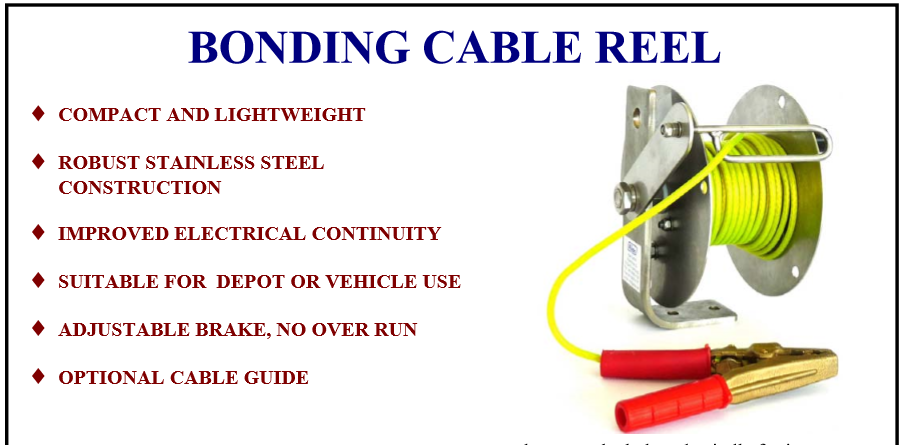

Aljac Bonding Reel Img2.PNG

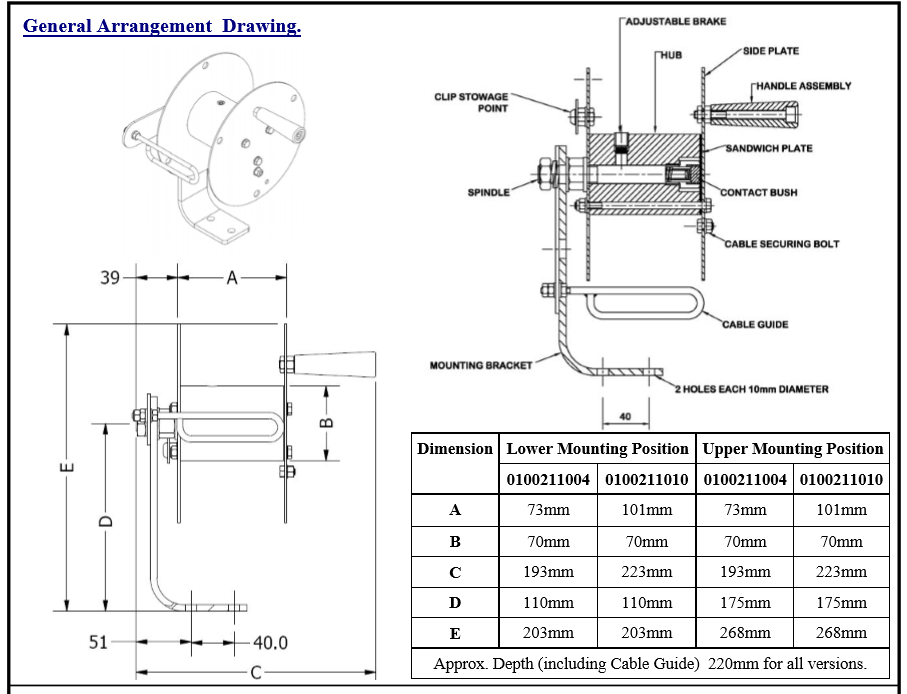

Aljac Bonding Drawing.PNG
Aljac Bonding Cable Reel _Catalog

GR Series, Hannay Gounding Cable Reel.

For Refueling or Hazardous Areas

  • Aircraft refueling
  • Chemical plants
  • Grain elevators
  • Rescue and Hazmat operations
  • These reels bond and/or ground aircraft, fuel trucks, and other equipment.
  • Provide smooth operation and require minimum cable pull.
  • Declutching arbor and adjustable guide arm with cable guide.
  • Standard finish is oven-cured enamel.
  • Manual rewind version also available.
  • All shown with optional cable and/or "Y" branch
  • Available with 1/8", 7x19 galvanized carbon steel cable.
  • 100 amp alligator clamp.
  • Stainless steel or plastic-covered cable and "Y" branches available at additional charge.

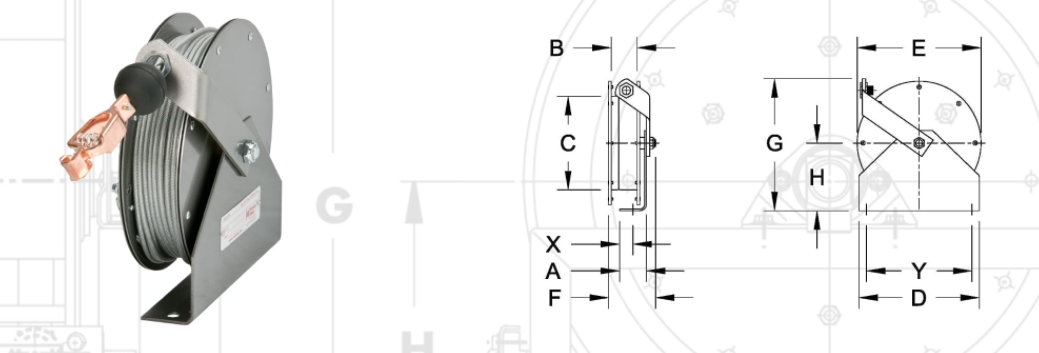

Hannay Cable Reel Drawing.PNG

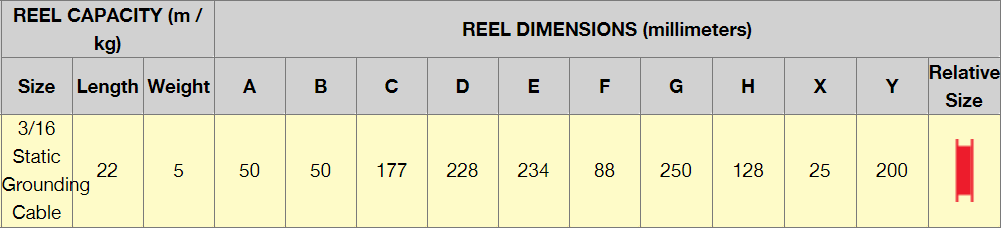

The Dimension : GR75
Hannay Reel GR75.PNG

Hannay Grounding Cable_Data Sheet

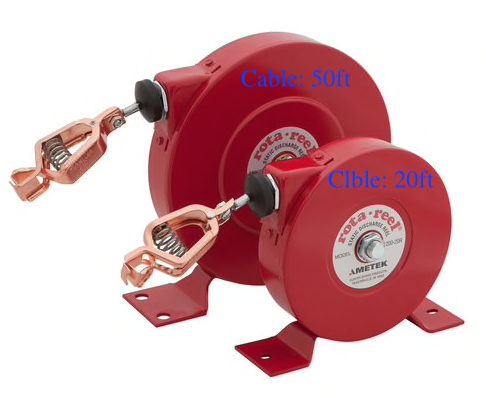

AMETEK Rota Reel.png

AMETEK Hunter Spring Rota-Reel Static Grounding/Bonding Reels with Galvanized Steel Cable

P/N: HS20020R                     HS70050R
Cables length:   20ft                  50 ft
Weight : 4 lbs                            6 lbs
Type: Spring Rewind with cable
Material: Steel
Made in USA.
